fischer FIXtainer DuoPower dowel (210 pieces)

fischer FIXtainer DuoPower - 210 plugs in the practical L-BOXX

Stackable thanks to click system ✓ Removable partitions ✓ Refillable ✓

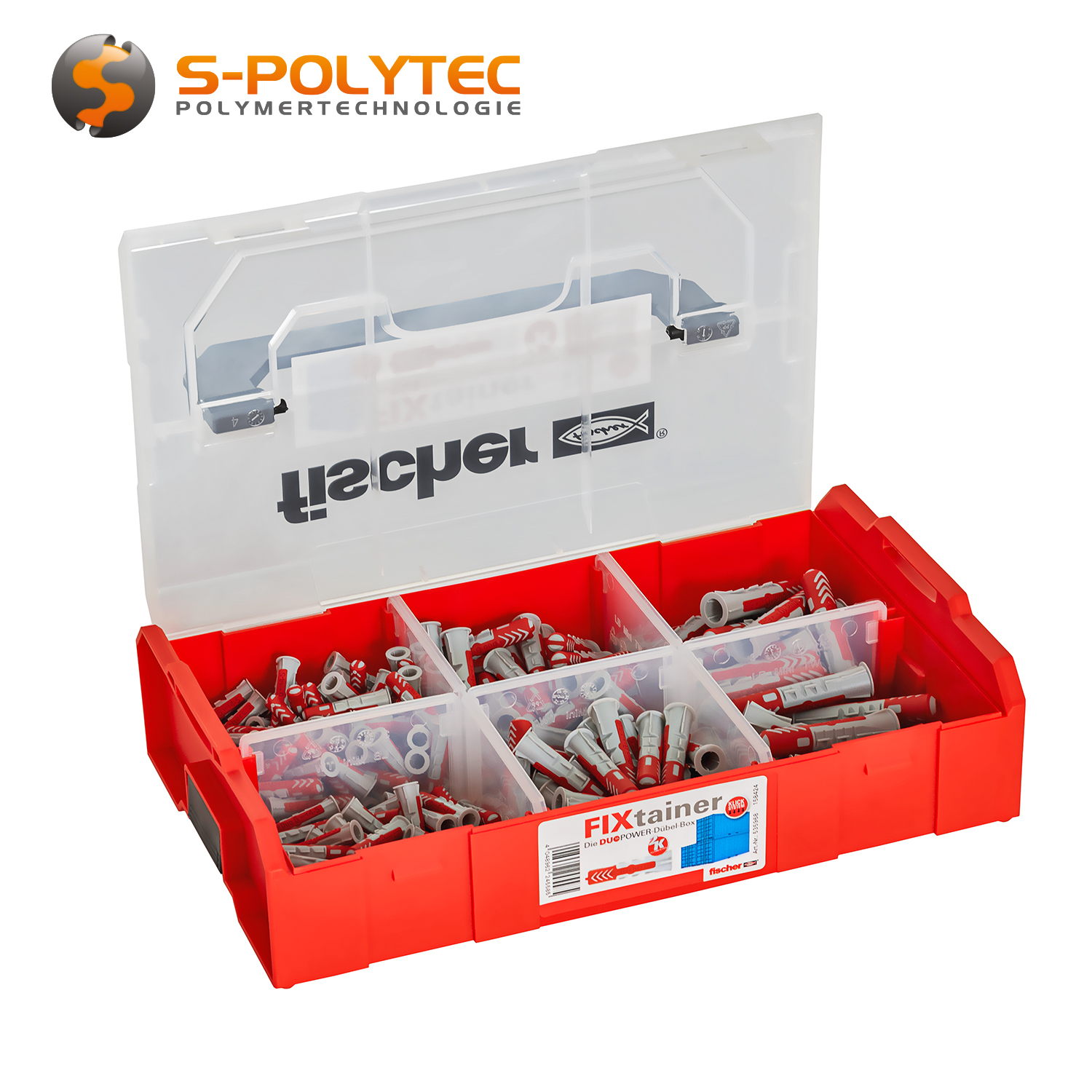

The fischer FIXtainer DuoPower assortment box contains 210 fischer DuoPower plugs in three different sizes, so that the right plug is always to hand for all fixings. The set contains 120 plugs in size 6x30mm, 60 in size 8x40mm and 30 more in size 10x50mm. These are the most commonly used dowel sizes in households and crafts. This makes the dowel assortment perfect for service fitters in the trade or as basic equipment for fastenings of all kinds in the household.

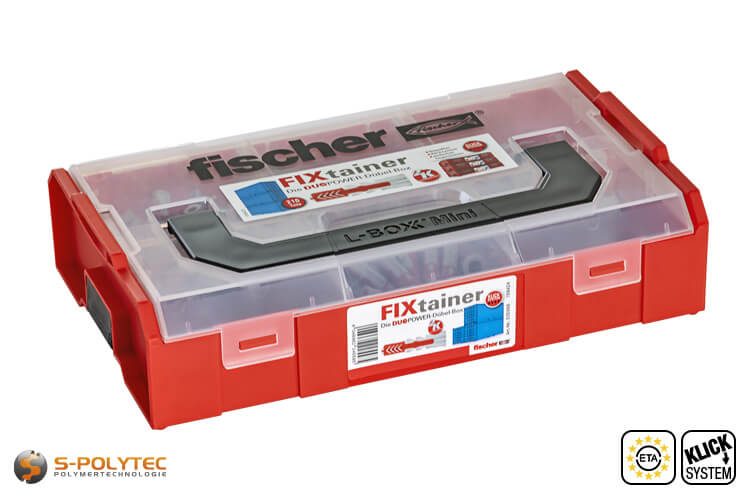

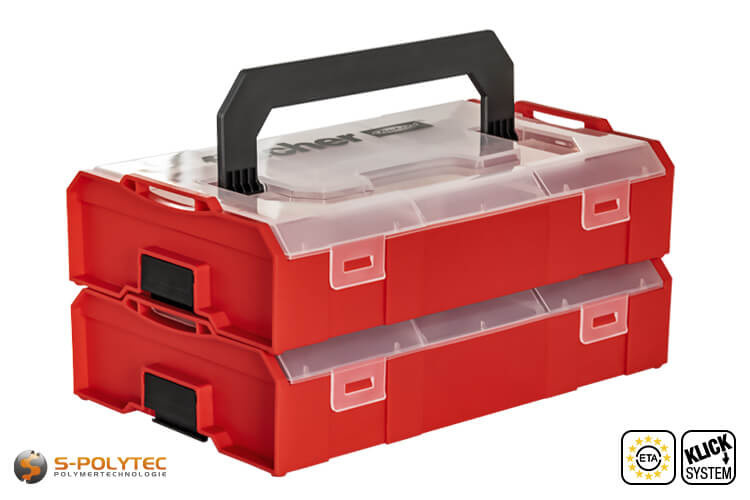

It is delivered filled in the practical L-BOXX Mini assortment box, which has a variable compartment division. Thanks to the integrated click system, the box can be stacked quickly and easily. This makes storage and transport easier, especially if further assortment boxes with matching screws, drills and other assembly materials are to be transported.

Scope of delivery:

• 1 x fischer FixTAINER L-BOXX Mini
• 120 x fischer universal plug DuoPower 6x30mm
• 60 x fischer universal plug DuoPower 8x40mm
• 30 x fischer universal plug DuoPower 10x50mm

Advantages of the L-BOXX Mini assortment box

The L-BOXX Mini assortment box is not only used by fischer for pre-sorted assortments, but is also used by many other well-known brands. Bosch, Flex, Gedore, Makita and countless other brands also rely on the popular L-BOXX system. This means that the assortment boxes are compatible with each other regardless of the brand, as long as the size is identical. The integrated click system with spring-loaded coupling levers allows the boxes to be stacked among each other so that they can be transported together without any problems.

The assortment box has a variable compartment division that can be divided with 3 small and 2 larger dividers. This means that up to 6 small individual compartments are possible, each of which is about 8 cm wide and 8 cm deep. A total of 36 compartment divisions are possible. If, for example, a small divider is removed, instead of two small compartments you get one larger compartment 8cm wide and 15cm deep. If all dividers are removed, the result is a large single compartment measuring 23cm x 15cm with a height of just under 5cm. The transparent lid provides a quick overview of the contents without having to open the box.

If the dowels are used up, the box can simply be refilled. The DuoPower dowels included can be reordered from us in the corresponding sizes in any quantity. In addition, the box can also be filled with other dowels or screws. With removable dividers, the box can also be filled with suitable drills, screwdrivers or bits. The compact plastic box is made entirely of polypropylene. This means that it is even suitable for storing food, even if this is certainly not the first area of application for which this compact transport box is used.

Technical data of the plastic box L-BOXX Mini

• Product type: L-BOXX Mini
• Material: Polypropylene
• External dimensions (WxDxH): 258.5mm x 157.5mm x 63.0mm
• Internal dimensions (WxDxH): 229.0mm x 149.5mm x 44.2mm
• Weight (empty): 0.3kg
• Loading capacity: max. 1.5kg
• Temperature resistance: -20°C - +80°C
• Food safe: Yes

The contents of the DuoPower dowel box in detail

The fischer DuoPower plug box contains the most common sizes of the universally applicable fischer DuoPower plug, so that you are prepared for all fixings and always have the right plug to hand.

The special feature of the fischer DuoPower universal plug is that it is suitable for all building materials, regardless of whether it is solid concrete and solid brick, hollow brick, aerated concrete or slab building materials. Thanks to the production of a hard and a soft component, the intelligent all-purpose plug automatically initiates the spreading, knotting or folding function depending on the building material.

The plastic anchor, which can be used in both push-in and push-through installation, has an anti-rotation device that prevents the anchor from turning when the screw is screwed in. The pronounced plug edge also prevents the plug from slipping into the drill hole.

NOTE: On the product page of single fischer DuoPower plugs we have summarised comprehensive information on possible areas of application, processing, as well as specific data sheets.

General data of the fischer DuoPower universal plug

• Dowel type: Plastic dowel
• Material: Two-component plastic
• Operating principle: Spread, knot, flap
• Version: With rim
• Mounting type(s): Push-in mounting, push-through mounting
• Building material: Concrete, solid brick, perforated brick, aerated concrete, natural stone, chipboard, hollow block concrete, hollow perforated brick, etc.

Universal plug fischer DuoPower Ø6x30mm

Anchors with a diameter of 6mm are among the most commonly used anchor sizes in the household. For this reason, this range also includes 120 plugs in the 6x30mm size. The fischer DuoPower with 6mm diameter is the perfect choice for almost all simple fixings in the home and trade and ensures a secure hold in all building materials. The small plug is particularly suitable for fixing picture frames, wall decorations or lighting. In addition, the small dowel is perfect for surface-mounted installations in the electrical and sanitary sector.

Technical data of the fischer DuoPower Ø6x30mm

• Dowel size: 6x30mm
• Ø Dowel: 6mm
• Dowel length: 30mm
• Ø Borehole: 6mm
• Borehole depth: min. 40mm
• Ø Screw: 4.0mm - 5.0mm
• Screw-in depth: min. 35mm
• Screw length: min. 35mm plus add-on part thickness
• Maximum recommended load: 95kg1

Universal plug fischer DuoPower Ø8x40mm

The fischer universal plug DuoPower in size 8x40mm has a maximum individual load of up to 110kg¹ and is therefore perfectly suitable for mounting lightweight wall shelves or wall cabinets. The all-purpose anchor ensures a secure anchorage in all building materials. Anchors with an 8mm diameter are very versatile, even if they are not used quite as often as an anchor with a 6mm diameter. The FIXtainer DuoPower contains 60 dowels in the size 8x40mm. With this quantity, a conventional household can usually get by for a very long time.

Technical data of the fischer DuoPower Ø8x40mm

• Dowel size: 8x40mm
• Ø Dowel: 8mm
• Dowel length: 40mm
• Ø Borehole: 8mm
• Borehole depth: min. 50mm
• Ø Screw: 4.5mm - 6.0mm
• Screw-in depth: min. 46mm
• Screw length: min. 46mm plus mounting thickness
• Maximum recommended load: 110kg1

Universal plug fischer DuoPower Ø10x50mm

For fixings where higher loads are required, the fischer DuoPower in size 10x50mm is the perfect choice. This anchor achieves a maximum load capacity of up to 215kg ¹ in solid concrete as a single load with a single anchor. Even in less solid building materials, such as sand-lime bricks or hollow bricks, the anchor has a secure hold, even if the load values are sometimes significantly lower. This makes the anchor ideal for mounting TV consoles, kitchen cabinets or bathroom and toilet fittings.

Technical data of the fischer DuoPower Ø10x50mm

• Dowel size: 10x50mm
• Ø Dowel: 10mm
• Dowel length: 50mm
• Ø Borehole: 10mm
• Borehole depth: min. 70mm
• Ø Screw: 6.0mm - 8.0mm
• Screw-in depth: min. 58mm
• Screw length: min. 58mm plus mounting thickness
• Maximum recommended load: 215kg1

NOTE: The maximum recommended loads¹ are the manufacturer’s specifications and apply as guide values in concrete (C20/25) using the maximum bolt diameter. Depending on the building material and processing, the maximum load capacity may differ.
