fischer FIXtainer SX-dowels with screws (210 pieces)

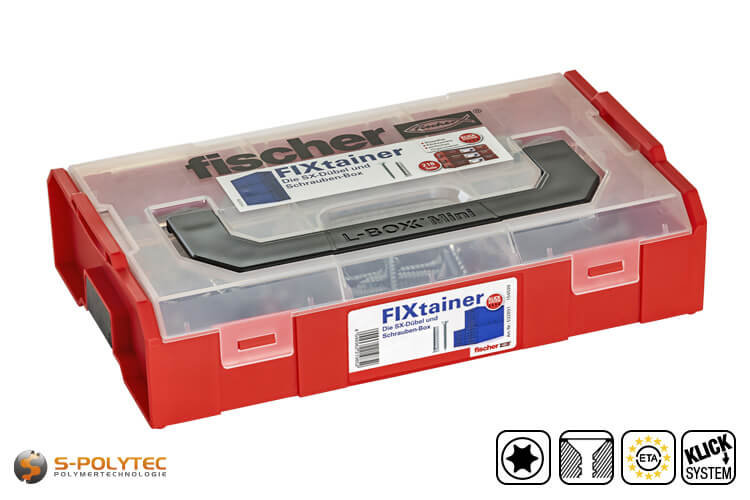

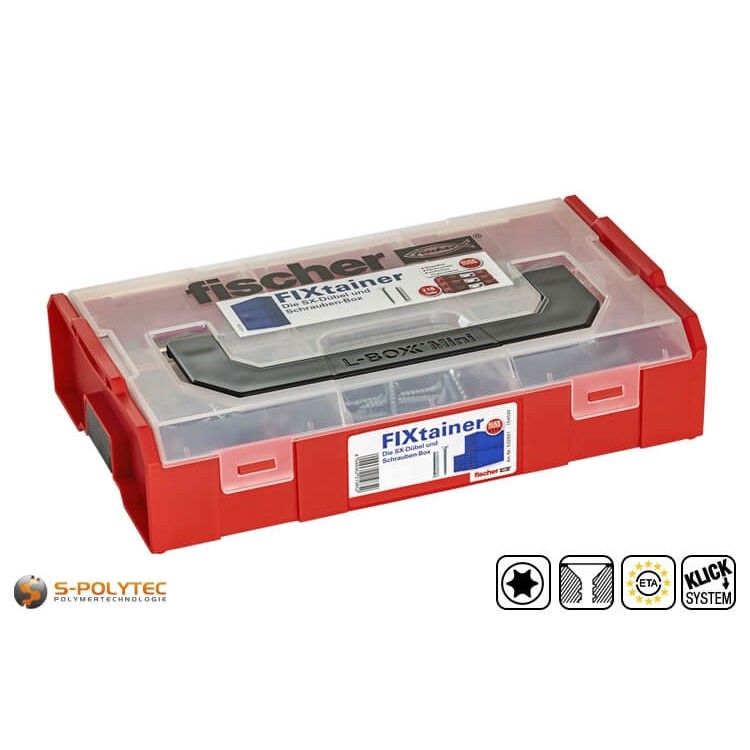

fischer FIXtainer SX plugs and screws in the L-BOXX transport box

Matching countersunk screws included ✓ Flexible compartment division ✓ Refillable ✓

The fischer FIXtainer SX plug and screw box contains 105 fischer SX expansion plugs in each of the three most important sizes, as well as the same number of plug screws. This means the range leaves nothing to be desired when it comes to fixing with plugs and screws in solid concrete ceilings or masonry walls. The expansion anchors, of which 60 are included in the size 6x30mm, 30 in the size 8x40mm and 15 in the size 10x50mm, have a powerful quadruple expansion, which is characterised by higher individual loads, compared to a simple expansion anchor. To ensure that the function is safely initiated, the anchor screws with countersunk head and full thread are perfectly matched to the respective anchor. The quantity of the three screw sizes matches the number of dowels.

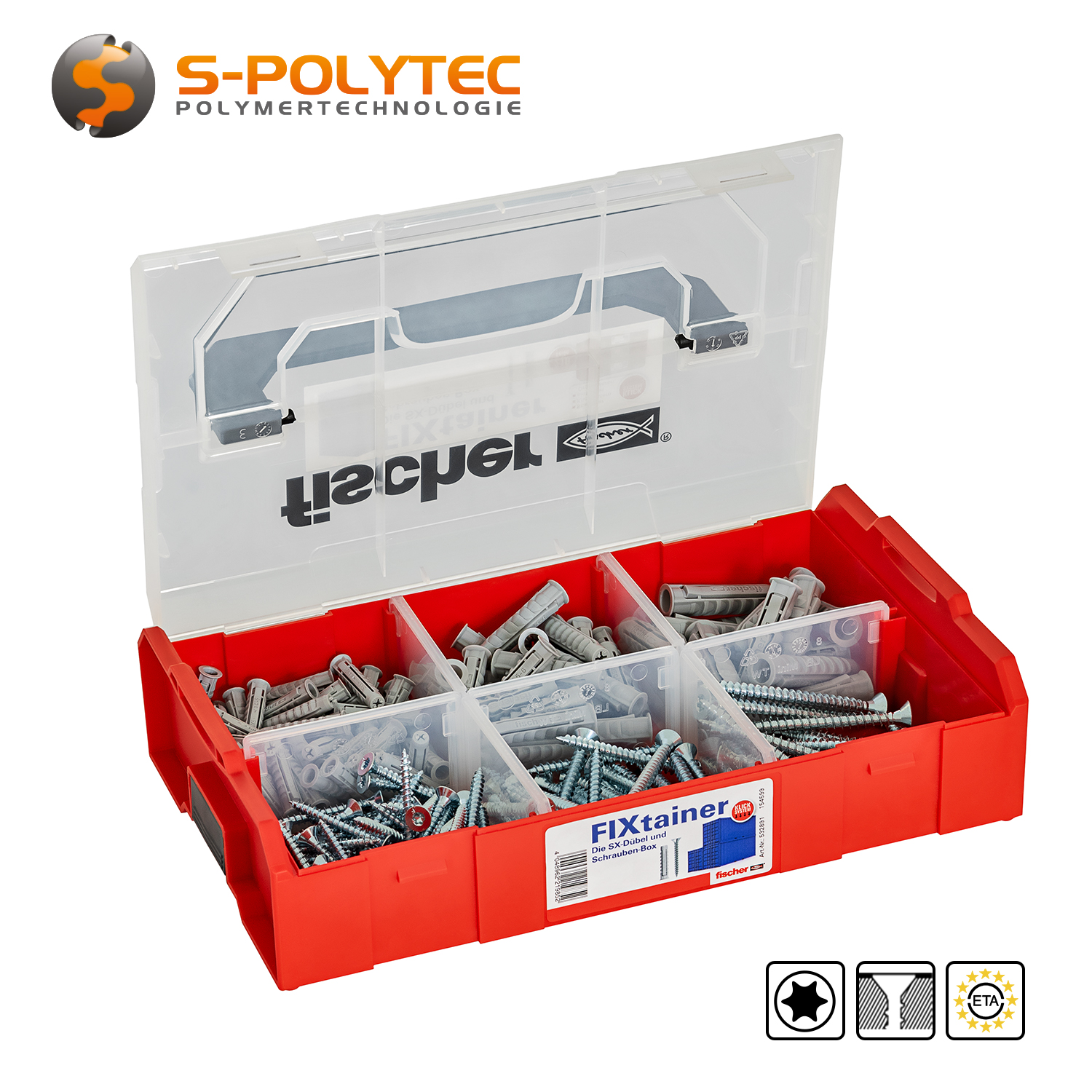

The set contains three dowel sizes and screws each. Each of these has its own place in the six compartments of the L-BOXX Mini, so that they can be removed quickly and easily, clearly separated from each other. The robust lid in transparent design makes it easy to see at a glance whether there is still enough assembly material for the installation.

Scope of delivery:

• 1 x fischer FixTAINER L-BOXX Mini
• 60 x fischer expansion plug SX 6x30mm
• 60 x fischer countersunk head screw 4.5x40mm (full thread, TX20)
• 30 x fischer expansion plug SX 8x40mm
• 30 x fischer countersunk head screw 5.0x55mm (full thread, TX20)
• 15 x fischer expansion plug SX 10x50mm
• 15 x fischer countersunk screw 6.0 x 70mm (full thread, TX30)

Advantages of the L-BOXX Mini assortment box

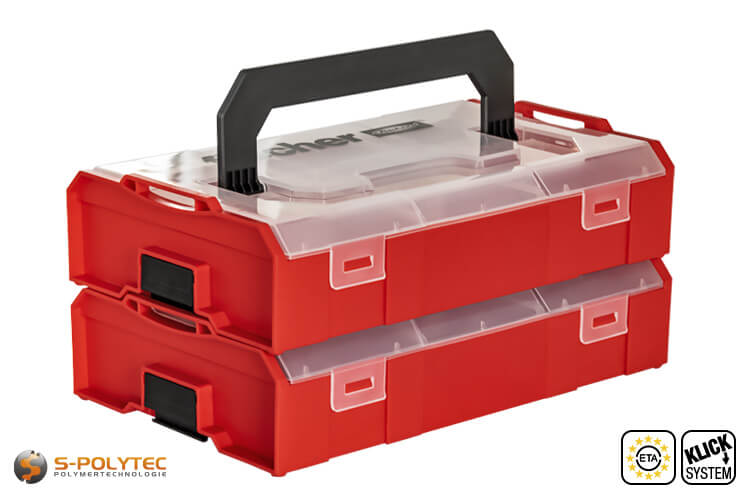

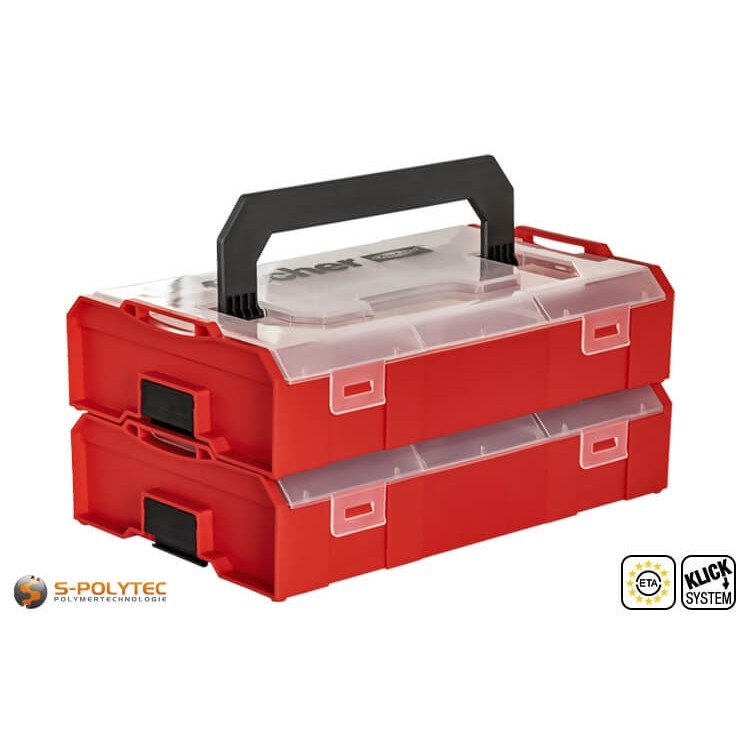

The fischer FIXtainers rely on the popular L-BOXX Mini from BS Systems, which is used by countless other brands as a filled or empty assortment box. The stackable box, which can be quickly and easily connected to other L-BOXX Mini boxes by means of an integrated click system, can be transported very easily as a group. You are not limited to fischer FIXtainer, because all L-BOXX Mini are compatible with each other. This means that the assortment boxes from Wiha, Flex, Bosch or Makita can be combined with each other without any problems. This makes storage easier, creates order and looks attractive.

Besides the simple possibility of stacking the L-BOXX, the variable compartment division is a main reason that makes the storage system for small assortments so popular. By removing or repositioning the dividers, 36 different variations are possible to divide the compartments individually. In the SX dowel-screw box, all 6 individual compartments that are possible are occupied by different dowels and screws. The size of a single compartment is approx. 8cm x 8cm and approx. 4.5cm high. If all dividers are removed, one achieves a single large compartment with internal dimensions of rounded 23cm in width, 15cm in depth.

The possible uses of the L-BOXX Mini are just as versatile as the division of the compartments, because once the dowels and screws have been used up, the storage box can be used in countless other ways. Of course, the dowels and screws can also simply be refilled. Alternatively, you can replenish the emptied compartments with suitable tools, drill bits, screwdriver bits or the like. Even in the office, the L-BOXX Mini offers a very good storage option to achieve order on the desk. The size of the compartments is perfectly suited to storing, for example, tacks, stamps, office and staple clips or writing tools in an orderly fashion.

Technical data of the L-BOXX Mini plastic box

• Product type: L-BOXX Mini
• Material: Polypropylene
• External dimensions (WxDxH): 258.5mm x 157.5mm x 63.0mm
• Internal dimensions (WxDxH): 229.0mm x 149.5mm x 44.2mm
• Weight (empty): 0.3kg
• Loading capacity: max. 1.5kg
• Temperature resistance: -20°C - +80°C
• Food safe: Yes

The contents of the SX plug and screw box in detail

The fischer SX plug and screw box contains 105 expansion plugs and 105 matching plug screws. To be ideally equipped for all fixings, the range includes plugs in diameters of 6mm, 8mm and 10mm. The SX anchor, which is mainly suitable for solid building materials such as concrete, solid sand-lime bricks or aerated concrete, initiates a secure anchoring through a powerful quadruple expansion. The anchor can also be used well for perforated building materials, even if the maximum individual load of an anchor is sometimes significantly lower for such building materials. The edge of the anchor prevents the anchor from slipping too deeply into the hole and, in addition to push-in installation, also allows it to be used in push-through installation. The anti-turn device prevents the anchor from turning when the screws included in the set are screwed in.

The set includes high-quality dowel screws made of galvanised steel so that you can start installation straight away. The screws with countersunk head and full thread are perfectly matched in diameter and length to the respective anchor, so that a permanently secure fastening is guaranteed. The modern Torx drive (inner star or inner hexagonal) enables effortless screwing without the screwdriver or bit slipping out of the drive. However, different bit sizes are required for screwing, which are listed in the technical data for the respective screws a little further down.

NOTE: For further information on the expansion anchors, as well as the possibility of ordering them to refill the assortment box, we offer the fischer SX expansion anchor as a single product. There you will find detailed information on possible areas of application and processing. The screws included in the set are not available individually from fischer. Alternatively, we carry the high-quality fischer PowerFast II screws with countersunk head in various sizes and designs in the anchor screws category.

General data of the fischer SX expansion plug

• Dowel type: Plastic dowel
• Material: Polyamide (Nylon)
• Functional principle: Spreading
• Design: with edge
• Mounting type(s): Pre-insertion mounting, through-insertion mounting
• Construction materials: Concrete, solid stone, perforated stone, aerated concrete, natural stone, and many more

General data of fischer countersunk screws

• Screw type: Dowel screw
• Thread type: Fully threaded
• Head shape: Countersunk head, round
• Material: Steel, electrogalvanised
• Corrosion protection: Galvanised, blue passivated
• UV resistance: Very good
• Rust resistance: Good
• Acid resistance: Moderate

Expanding plug fischer SX Ø6x30mm with countersunk screw

As in all fischer plug boxes, the range consisting of screws and plugs includes the smallest ones most often, because 6mm plugs are needed for most fixings. The countersunk screw with full thread is a guarantee for maximum fixing security, especially in push-through installation. In push-through mounting, attachments with a maximum thickness of 5mm are possible. This results from the screw length of 40 mm and a required screw-in depth of at least 35 mm.

I'm sure you've already used a 6mm plug a few times, because the powerful plug is suitable for countless objects. Lamps, smoke detectors, pictures, whiteboards, toilet roll holders, skirting boards or plastic cable ducts are just a few examples. The list of possible applications for the smallest screw-dowel combination in the range can be extended indefinitely.

Technical data of the fischer SX Ø6x30mm expansion plug

• Dowel size: 6x30mm
• Ø Dowel: 6mm
• Dowel length: 30mm
• Ø Hole: 6mm
• Borehole depth: min. 40mm
• Maximum recommended load: 65kg1

Technical data of countersunk screws to SX Ø6x30mm

• Screw size: 4.5x40mm
• Ø Thread: 4.5mm
• Screw length: 40mm
• Ø Screw head: 9.0mm
• Drive: Torx 20 (TX20, ISR20)

Expanding plug fischer SX Ø8x40mm with countersunk screw

The SX plug and screw box contains 30 plugs in 8mm diameter and 30 screws in size Ø5.0x55mm. The screw length of 55mm also corresponds to the thread length for the countersunk screws and results in a perfectly matched load distribution in the anchor. The greatest possible thickness of the mounting object is limited to 9mm for this screw in order to achieve the required screw-in depth of 45mm.

The combination of the eighth dowel and the corresponding screw from the set is perfectly suitable for fastening drywall profiles on walls, ceilings and in the floor, in order to later cover them with plasterboard. The mounting of wall wardrobes, beamer screens or loudspeakers of home cinema systems are also among the possible areas of application for which an 8mm dowel is the perfect size.

Technical data of the fischer SX Ø8x40mm expansion plug

• Dowel size: 8x40mm
• Ø Dowel: 8mm
• Dowel length: 40mm
• Ø Bore: 8mm
• Borehole depth: min. 60mm
• Maximum recommended load: 70kg1

Technical data of the countersunk screws to SX Ø8x40mm

• Screw size: 5.0x55mm
• Ø Thread: 5.0mm
• Screw length: 55mm
• Ø Screw head: 10.0mm
• Drive: Torx 20 (TX20, ISR20)

Expansion plug fischer SX Ø10x50mm with countersunk screw

The 10mm diameter expansion anchors, of which there are 15 in the range, ensure secure anchoring. The countersunk screw in Ø6.0x70mm guarantees the expansion of the anchor and thanks to the full thread, the load is excellently distributed over the entire screw-in depth. The length of 70mm allows for an attachment thickness of up to 14mm in pre-set installation, which is more than sufficient for most fixings.

Possible application examples are the wall mounting of TV brackets, radiators or distribution boxes in detached houses. In addition, the dowel-screw combination is also suitable for mounting wall shelves and wall cabinets in kitchens, bathrooms and toilets.

Technical data of the fischer SX Ø10x50mm expansion plug

• Plug size: 10x50mm
• Ø Dowel: 10mm
• Dowel length: 50mm
• Ø Bore: 10mm
• Borehole depth: min. 70mm
• Maximum recommended load: 120kg1

Technical data of the countersunk screws for SX Ø10x50mm

• Screw size: 6.0x70mm
• Ø Thread: 6.0mm
• Screw length: 70mm
• Ø Screw head: 12.0mm
• Drive: Torx 30 (TX30, ISR30)

NOTE: The technical data on the dowels, in particular the maximum recommended loads¹ are specifications of the manufacturer. These guide values apply as a single load when used in concrete (C20/25) at maximum screw diameter. The actual load values vary depending on the concrete building material, the screw used and the type of installation.
